| Dim oAnsoftApp
Dim oDesktop
Dim oProject
Dim oDesign
Dim oEditor
Dim oModule
Set oAnsoftApp = CreateObject("Q3DExtractor.ScriptInterface")
Set oDesktop = oAnsoftApp.GetAppDesktop()
oDesktop.NewProject
Set oProject = oDesktop.GetActiveProject
oProject.InsertDesign "Q3D Extractor", "Q3DDesign1", "", ""
Set oDesign = oProject.SetActiveDesign("Q3DDesign1")
Set oEditor = oDesign.SetActiveEditor("3D Modeler")

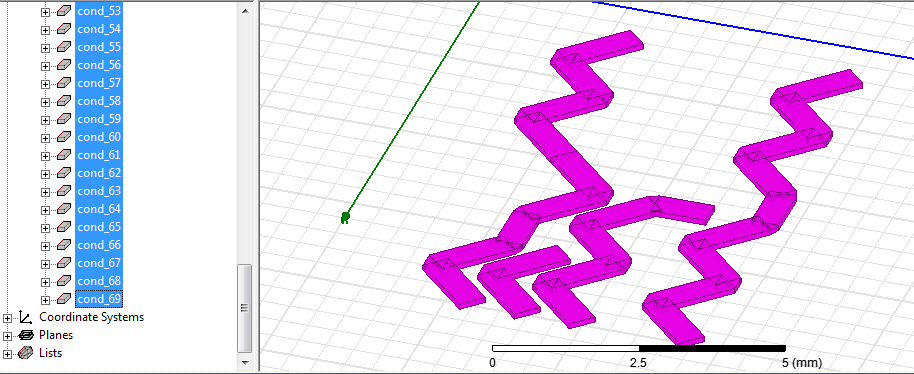

oEditor.ImportDXF Array("NAME:options", "FileName:=", _
"C:/Users/jawhar/Desktop/dfg/wi3.dxf", "Scale:=", 0.001, "AutoDetectClosed:=", _
true, "SelfStitch:=", true, "DefeatureGeometry:=", false, "DefeatureDistance:=", _
0, "RoundCoordinates:=", false, "RoundNumDigits:=", 4, "WritePolyWithWidthAsFilledPoly:=", _
false, "ImportMethod:=", 1, "2DSheetBodies:=", false, Array("NAME:LayerInfo", Array("NAME:0", "source:=", _
"0", "display_source:=", "0", "import:=", true, "dest:=", "0", "dest_selected:=", _
false, "layer_type:=", "signal"), Array("NAME:cond", "source:=", "cond", "display_source:=", _
"cond", "import:=", true, "dest:=", "cond", "dest_selected:=", false, "layer_type:=", _
"signal")))
Set oEditor = oDesign.SetActiveEditor("3D Modeler")

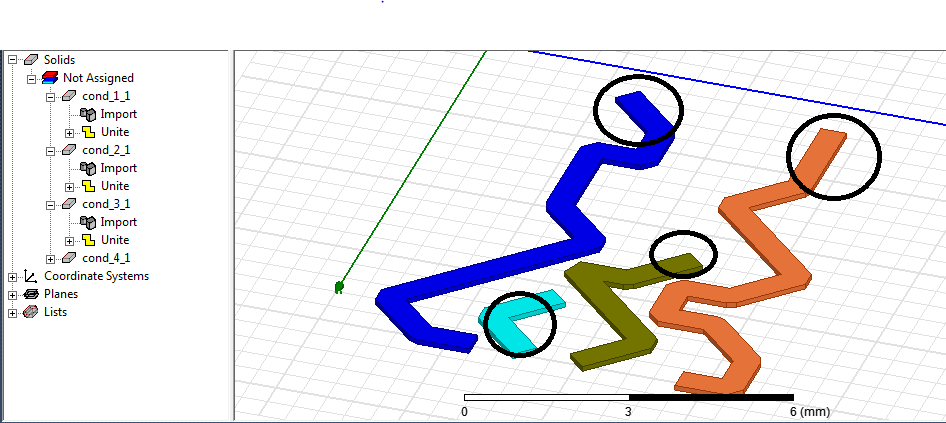

oEditor.Unite Array("NAME:Selections", "Selections:=", _
"cond_1,cond_2,cond_3,cond_26,cond_27,cond_39,cond_40,cond_52,cond_59,cond_60,c" & _
"ond_4,cond_5,cond_28,cond_41,cond_53,cond_7,cond_29,cond_30,cond_42,cond_61,co" & _
"nd_9,cond_8,cond_43,cond_6,cond_54"), Array("NAME:UniteParameters", "KeepOriginals:=", _
false)
oEditor.Unite Array("NAME:Selections", "Selections:=", _
"cond_18,cond_19,cond_34,cond_35,cond_47,cond_48,cond_57,cond_64,cond_17,cond_2" & _
"0,cond_21,cond_58,cond_67,cond_36,cond_49,cond_22,cond_65,cond_69,cond_38,cond" & _
"_51,cond_25,cond_24,cond_23,cond_50,cond_37"), Array("NAME:UniteParameters", "KeepOriginals:=", _
false)
oEditor.Unite Array("NAME:Selections", "Selections:=", _
"cond_31,cond_44,cond_10,cond_11,cond_12,cond_13,cond_14,cond_32,cond_45,cond_5" & _
"6,cond_63,cond_66,cond_68,cond_55,cond_62"), Array("NAME:UniteParameters", "KeepOriginals:=", _
false)
oEditor.Unite Array("NAME:Selections", "Selections:=", _
"cond_16,cond_15,cond_33,cond_46"), Array("NAME:UniteParameters", "KeepOriginals:=", _
false) |
