| VERSION 5.00

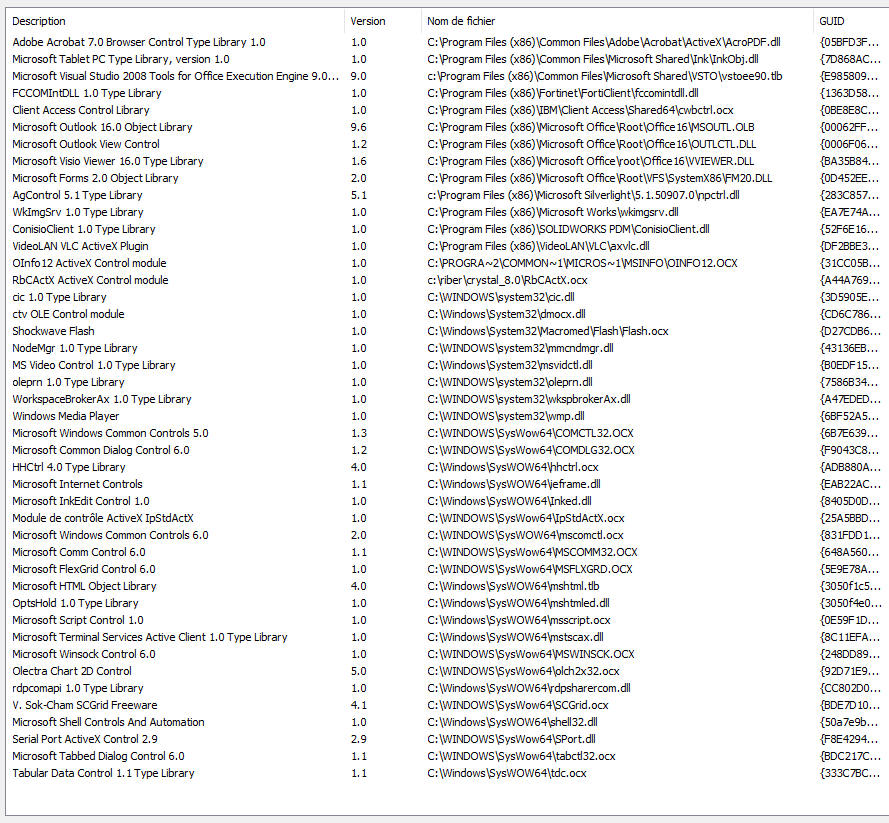

Object = "{648A5603-2C6E-101B-82B6-000000000014}#1.1#0"; "MSCOMM32.OCX"
Object = "{BDC217C8-ED16-11CD-956C-0000C04E4C0A}#1.1#0"; "tabctl32.ocx"
Object = "{248DD890-BB45-11CF-9ABC-0080C7E7B78D}#1.0#0"; "MSWINSCK.OCX"
Dim ParamNum(0 To 5) As Integer
Dim EthernetConnected
Private WithEvents CommEvent As cComm242
Attribute CommEvent.VB_VarHelpID = -1
Private Sub Command1_Click()
End Sub
Private Sub cmdHelp_Click()
Dim MsgTxt As String
MsgTxt = "This program will help you understand communications with the EIES program." & vbCrLf
MsgTxt = MsgTxt & "Consult the communications section of the EIES User Guide for detailed information." & vbCrLf & vbCrLf
MsgTxt = MsgTxt & "First, setup your communications on the Utility tab." & vbCrLf & vbCrLf
MsgTxt = MsgTxt & "Select Query to read or Update to set values in the EIES program." & vbCrLf
MsgTxt = MsgTxt & "Select a parameter on the tabbed dialog. If Update is selected, enter a parameter value." & vbCrLf
MsgTxt = MsgTxt & "Press Send to send the Query or Update to the EIES program." & vbCrLf & vbCrLf
MsgTxt = MsgTxt & "The strings sent to and received from the EIES program are shown below."
MsgBox MsgTxt, , "EIES Comm Help"
End Sub
Private Sub CommEvent_ResponseEvent(sText As String)
Dim strData As String
strData = sText
Do While Len(strData) > 0
RcvMessage Left$(strData, 1)
strData = Right$(strData, Len(strData) - 1)
Loop
End Sub
Private Sub Form_Load()
Dim i As Integer
' In case SQS242 Comm not loaded
On Error Resume Next
Set CommEvent = SQS242Comm
Me.Caption = " " & Me.Caption & " - V" & App.Major & "." & App.Minor & App.Revision
For i = 0 To 99
cboLayer.AddItem i
Next i
cboOutput.Clear
cboPower.Clear
For i = 1 To 8
cboOutput.AddItem i
cboPower.AddItem i
Next i
cboPower.AddItem "All"
cboOutput.ListIndex = 0
cboPower.ListIndex = 0
cboLayer.ListIndex = 0
cboSensor.ListIndex = 0
cboOutputRdg.ListIndex = 0
cboSensorRdg.ListIndex = 0
optMode(0) = True
optQueryProcess(0) = True
optMeasure(10) = True
OptLayer(0) = True
optFilm(0) = True
optFilm(30) = True
optUtility(0) = True
optSensor(0) = True
tabMain.Tab = 0
' Read last comm setup (changed opt indexes, so a little remapping needed for backward compatibility)
cboPort.ListIndex = CInt(GetSetting(App.Title, "Comm Settings", "Port", "0"))
If cboPort.ListIndex < 0 Then cboPort.ListIndex = 0
cboBaud.ListIndex = CInt(GetSetting(App.Title, "Comm Settings", "Baud Rate", "0"))
If cboBaud.ListIndex < 0 Then cboBaud.ListIndex = 0
txtServer.Text = GetSetting(App.Title, "Comm Settings", "Ethernet Server", "")
txtPort.Text = GetSetting(App.Title, "Comm Settings", "Ethernet Port", "")
Select Case CInt(GetSetting(App.Title, "Comm Settings", "Comm Select", "3"))
Case 0, 1
'RS232
optComm(0).Value = True
Case 2
'Ethernet
optComm(2).Value = True
Case 3
'ActiveX
optComm(3).Value = True
End Select
End Sub
Private Sub Form_QueryUnload(Cancel As Integer, UnloadMode As Integer)
Dim i As Integer
For i = 0 To 3
If i <> 1 Then
If optComm(i).Value = True Then
SaveSetting App.Title, "Comm Settings", "Comm Select", CStr(i)
Exit For
End If
End If
Next i
SaveSetting App.Title, "Comm Settings", "Port", cboPort.ListIndex
SaveSetting App.Title, "Comm Settings", "Baud Rate", cboBaud.ListIndex
SaveSetting App.Title, "Comm Settings", "Ethernet Server", txtServer
SaveSetting App.Title, "Comm Settings", "Ethernet Port", txtPort
If tcpMain.State = sckConnected Then
tcpMain.Close
End If
End Sub
Private Sub cmdSend_Click()
' Adds CRC and ships it out the comm or ethernet port
On Error Resume Next
Dim MsgString As String
If optMode(0) Then
Select Case tabMain.Tab
Case 0
MsgString = QueryProcess
Case 1 ' Process
MsgString = QueryMeasurement
Case 2
MsgString = QueryLayer
Case 3
MsgString = QueryFilm
Case 4
MsgString = QueryFilm
Case 5
MsgString = QuerySensor
Case 6
MsgString = QueryUtility
End Select
Else
Select Case tabMain.Tab
Case 0
MsgString = UpdateProcess
Case 1
'MsgString = UpdateMeasurement
Case 2
MsgString = UpdateLayer
Case 3
MsgString = UpdateFilm
Case 4
MsgString = UpdateFilm
Case 5
MsgString = UpdateSensor
Case 6
MsgString = UpdateUtility
End Select
End If
' Add the checksum to message and ship it
If chkChecksum.Value = vbChecked Then
MsgString = MsgString & ";" & CalcChkSum(MsgString & ";") & Chr$(13)
Else
MsgString = MsgString & ";" & "00" & Chr$(13)
End If
' Clear receive, and show transmit text boxes
If Len(MsgString) > 0 Then
txtSent = Left$(MsgString, Len(MsgString) - 1)
Else
txtSent = ""
End If
txtResponse = ""
' Ship it danno
Select Case True
Case optComm(0)
With MSComm1
.PortOpen = True
If .PortOpen Then
' Clear the receive buffer
.InBufferCount = 0
.Output = MsgString
' Set Tx Timeout timer
Else
' Trying to send with comm port closed
' Catch this case during development
Debug.Assert False
End If
End With
Case optComm(2)
' Ethernet selected, be sure we are connected
With tcpMain
If .State = sckConnected _
And .RemoteHost = txtServer _
And .RemotePort = CInt(Val(txtPort.Text)) Then
.SendData MsgString
Else
.Close
.LocalPort = 0
.RemoteHost = txtServer
.RemotePort = CInt(Val(txtPort.Text))
.Connect
TimeWait 1
.SendData MsgString
End If
End With
Case optComm(3)
SQS242Comm.Command = MsgString
End Select
End Sub
Private Sub RcvMessage(RcvChar As String)
Static MsgString As String
Dim NakErr As String
Select Case RcvChar
Case "@"
MsgString = RcvChar
Case Chr$(13)
Select Case Mid$(MsgString, 5, 1)
Case Chr$(6)
txtResponse = Left$(MsgString, 4) _
& "ACK" & Right$(MsgString, Len(MsgString) - 5)
Case Chr$(21)
Select Case Mid$(MsgString, 7, 2)
Case "01"
NakErr = "CMD"
Case "02"
NakErr = "PRM"
Case "03"
NakErr = "FMT"
Case "04"
NakErr = "CHK"
Case "05"
NakErr = "REQ"
Case "06"
NakErr = "UNK"
Case "07"
NakErr = "TMO"
End Select
txtResponse = Left$(MsgString, 4) _
& "NAK" & ";" & NakErr _
& Right$(MsgString, Len(MsgString) - 8)
Case Else
txtResponse = MsgString
End Select
Case Else
MsgString = MsgString & RcvChar
End Select
End Sub
Private Sub optSensor_Click(Index As Integer)
ParamNum(1) = Index + 1
End Sub
Private Sub tabMain_Click(PreviousTab As Integer)
Select Case tabMain.Tab
Case 1
optMode(0) = True
optMode(1).Enabled = False
Case Else
optMode(1).Enabled = True
End Select
End Sub
Private Sub tcpMain_DataArrival(ByVal bytesTotal As Long)
Dim strData As String
tcpMain.GetData strData
Do While Len(strData) > 0
RcvMessage Left$(strData, 1)
strData = Right$(strData, Len(strData) - 1)
Loop
End Sub
Private Sub MSComm1_OnComm()
With MSComm1
Select Case .CommEvent
Case comEvReceive
Do While .InBufferCount > 0
RcvMessage Chr$(AscB(.Input))
Loop
End Select
End With
End Sub
Private Sub cboBaud_Click()
MSComm1.Settings = cboBaud.Text & "n,8,1"
End Sub
Private Sub cboPort_Click()
If optComm(0) = True Then
MSComm1.CommPort = cboPort.ListIndex + 1
End If
End Sub
Private Sub optComm_Click(Index As Integer)
On Error Resume Next
Select Case Index
Case 0, 1
' Setup Comm port
With MSComm1
.CommPort = cboPort.ItemData(cboPort.ListIndex)
.Handshaking = comNone
.InBufferSize = 1024
.NullDiscard = False
.RTSEnable = False
.InputMode = comInputModeBinary
.InputLen = 1
.RThreshold = 1
.SThreshold = 0
End With
tcpMain.Close
Case 2
MSComm1.PortOpen = False
Case 3
MSComm1.PortOpen = False
tcpMain.Close
End Select
End Sub
Private Sub optFilm_Click(Index As Integer)
Select Case Index
Case Is < 6, 12 To 22
ParamNum(3) = Index + 1
Case Else
ParamNum(4) = Index + 1
End Select
End Sub
Private Sub optMeasure_Click(Index As Integer)
ParamNum(1) = Index + 1
End Sub
Private Sub optQueryProcess_Click(Index As Integer)
ParamNum(0) = Index + 1
End Sub
Private Sub optUtility_Click(Index As Integer)
ParamNum(5) = Index + 1
End Sub
Private Sub optUpdateProcess_Click(Index As Integer)
ParamNum(0) = Index + 1
End Sub
Private Sub optLayer_Click(Index As Integer)
ParamNum(2) = Index + 1
End Sub
Private Sub optMode_Click(Index As Integer)
Dim i As Integer
Select Case Index
Case 0
' Query Mode
optUpdateProcess(1).Enabled = False
optUpdateProcess(2).Enabled = False
optUpdateProcess(5).Enabled = False
optUpdateProcess(7).Enabled = False
optUpdateProcess(50).Enabled = False
optUpdateProcess(60).Enabled = False
For i = 1 To 7
optQueryProcess(i).Enabled = True
Next i
optQueryProcess(8).Enabled = True
optQueryProcess(10).Enabled = True
optQueryProcess(20).Enabled = True
' Measurements
Frame6.Enabled = True
'Layer
OptLayer(0).Enabled = True
OptLayer(1).Enabled = True
' Utility
For i = 10 To 12
optUtility(i).Enabled = True
Next i
txtUpdate.Visible = False
lblUpdate.Visible = False
Case 1
' Disable process inappropriate updates
optUpdateProcess(1).Enabled = True
optUpdateProcess(2).Enabled = True
optUpdateProcess(5).Enabled = True
optUpdateProcess(7).Enabled = True
optUpdateProcess(50).Enabled = True
optUpdateProcess(60).Enabled = True
For i = 1 To 7
optQueryProcess(i).Enabled = False
Next i
optQueryProcess(6).Enabled = True
optQueryProcess(8).Enabled = False
optQueryProcess(10).Enabled = False
optQueryProcess(20).Enabled = False
' Measurements
Frame6.Enabled = False
' Layer
OptLayer(0).Enabled = False
OptLayer(1).Enabled = False
'Utility
For i = 10 To 12
optUtility(i).Enabled = False
Next i
txtUpdate.Visible = True
lblUpdate.Visible = True
End Select
End Sub
Private Function CalcChkSum(ByRef Message As String) As String
' Calcultes the FCS checksum of a string of characters.
' Received messages must be stripped of their terminator charaters
' before passing to this routine.
Dim i As Integer
Dim FCS As Integer
' XOR ASCII codes
For i = 1 To Len(Message)
FCS = Asc(Mid$(Message, i, 1)) Xor FCS
Next i
' Conver to two character hex string
If Len(Hex$(FCS)) = 1 Then
CalcChkSum = "0" & Hex$(FCS)
Else
CalcChkSum = Hex$(FCS)
End If
End Function
Private Function QueryProcess() As String
Select Case ParamNum(0)
Case 1 To 10, 30 To 39, 71 To 74
QueryProcess = "@QP;0" & CStr(ParamNum(0))
Case 11 To 16
QueryProcess = "@QP;" & CStr(ParamNum(0) + cboPower.ListIndex)
Case 21 To 28
QueryProcess = "@QP;" & CStr(ParamNum(0) + cboPower.ListIndex)
Case 41 To 48
QueryProcess = "@QP;" & CStr(ParamNum(0) + cboPower.ListIndex)
End Select
End Function
Private Function UpdateProcess() As String
' Use Query as basis so only one routine is required
Select Case ParamNum(0)
Case 0 To 10, 36, 37, 38, 71 To 74
UpdateProcess = "@U" _
& Right$(QueryProcess, Len(QueryProcess) - 2) _
& ";" & txtUpdate
Case 11 ' Set Layer
UpdateProcess = "@UP;" & CStr(ParamNum(0)) & ";" & txtUpdate
Case 30
If txtUpdate = "1" Then
UpdateProcess = "@UP;31"
Else
UpdateProcess = "@UP;30"
End If
Case 32
If txtUpdate = "1" Then
UpdateProcess = "@UP;33"
Else
UpdateProcess = "@UP;32"
End If
Case 34
If txtUpdate = "1" Then
UpdateProcess = "@UP;35"
Else
UpdateProcess = "@UP;34"
End If
Case 41
UpdateProcess = "@UP;" & CStr(ParamNum(0) + CInt(cboPower.ListIndex)) & ";" & txtUpdate
Case 51
UpdateProcess = "@UP;" & CStr(ParamNum(0) + CInt(cboPower.ListIndex)) & ";" & txtUpdate
Case 61
UpdateProcess = "@UP;" & CStr(ParamNum(0) + CInt(cboPower.ListIndex)) & ";" & txtUpdate
End Select
End Function
Private Function QueryMeasurement() As String
Select Case ParamNum(1)
Case 1 To 2
Select Case cboSensorRdg.ListIndex
Case 0
' Emission current
QueryMeasurement = "@QM;5" & CStr(ParamNum(1))
Case 1
' Leakage Current
QueryMeasurement = "@QM;5" & CStr(ParamNum(1) + 4)
Case 2
' Power
QueryMeasurement = "@QM;6" & CStr(ParamNum(1))
Case 3
' Status
QueryMeasurement = "@QM;6" & CStr(ParamNum(1) + 4)
Case 4
' Filament Current
QueryMeasurement = "@QM;7" & CStr(ParamNum(1))
Case 5
' Bias voltage
QueryMeasurement = "@QM;7" & CStr(ParamNum(1) + 4)
End Select
Case 11 To 18
QueryMeasurement = "@QM;" & CStr((10 * cboOutputRdg.ListIndex) + ParamNum(1))
End Select
End Function
Private Function QueryLayer() As String
Select Case ParamNum(2)
Case 1
QueryLayer = "@QL;0" & CStr(ParamNum(2)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 2
' Material is a film parameter, but clearer on this tab
QueryLayer = "@QF;0" & CStr(28) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 3 To 9
' Subtract one from paramnum because of material
QueryLayer = "@QL;0" & CStr(ParamNum(2) - 1) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 40, 42 To 46
QueryLayer = "@QL;" & CStr(ParamNum(2)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 41
' Layer Index
Case 47
' Source Index Done
Case 48
'Layer Index Done
Case Else
QueryLayer = "@QL;" & CStr(ParamNum(2)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
End Select
End Function
Private Function UpdateLayer() As String
UpdateLayer = "@U" _
& Right$(QueryLayer, Len(QueryLayer) - 2) _
& ";" & txtUpdate
End Function
Private Function QueryFilm() As String
Select Case tabMain.Tab
Case 3
Select Case ParamNum(3)
Case 1 To 9
QueryFilm = "@QF;0" & CStr(ParamNum(3)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 10 To 41
QueryFilm = "@QF;" & CStr(ParamNum(3)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
End Select
Case 4
Select Case ParamNum(4)
Case 1 To 9
QueryFilm = "@QF;0" & CStr(ParamNum(4)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
Case 10 To 41
QueryFilm = "@QF;" & CStr(ParamNum(4)) & ";" _
& (cboLayer.ListIndex) & ";" _
& (cboOutput.ListIndex)
End Select
End Select
End Function
Private Function UpdateFilm() As String
UpdateFilm = "@U" _
& Right$(QueryFilm, Len(QueryFilm) - 2) _
& ";" & txtUpdate
End Function
Private Function QueryUtility() As String
' This function requires an index because of the set Full Scale command
' so send a dummy index for 1 to 7, and 11 to 14
Select Case ParamNum(5)
Case 1 To 7, 11 To 14
QueryUtility = "@QU;0" & CStr(ParamNum(5))
Case 16
' Any string
QueryUtility = txtString
End Select
End Function
Private Function UpdateUtility() As String
Dim FPValue As Integer
Dim i As Integer
Select Case ParamNum(5)
Case 6
For i = 0 To 10
If chkFP(i).Value = vbChecked Then
FPValue = FPValue + (2 ^ i)
End If
Next i
UpdateUtility = "@U" _
& Right$(QueryUtility, Len(QueryUtility) - 2) _
& ";" & CStr(FPValue)
Case 1 To 5, 7, 11 To 14
UpdateUtility = "@U" _
& Right$(QueryUtility, Len(QueryUtility) - 2) _
& ";" & txtUpdate
End Select
End Function
Private Function QuerySensor() As String
Select Case cboSensor.ListIndex
Case 0
' Emission On/Off
QuerySensor = "@QS;0" & CStr((2 * (ParamNum(1) - 1)) + 1)
Case 1
' Emission SetPt
QuerySensor = "@QS;1" & CStr(ParamNum(1))
Case 2
' Max. leakage
QuerySensor = "@QS;2" & CStr(ParamNum(1))
Case 3
' Gas Cal
QuerySensor = "@QS;3" & CStr(ParamNum(1))
End Select
End Function
Private Function UpdateSensor() As String
Select Case cboSensor.ListIndex
Case 0
' Emission on/off
If txtUpdate = "1" Then
' On
UpdateSensor = "@US;0" & CStr(2 * ParamNum(1))
Else
' Off
UpdateSensor = "@US;0" & CStr((2 * ParamNum(1)) - 1)
End If
Case 1
' Emission Setpt
UpdateSensor = "@US;1" & CStr(ParamNum(1)) & ";" & txtUpdate
Case 2
' Max Leakage
UpdateSensor = "@US;2" & CStr(ParamNum(1)) & ";" & txtUpdate
Case 2
' Gas Cal
UpdateSensor = "@US;3" & CStr(ParamNum(1)) & ";" & txtUpdate
End Select
End Function
Public Sub TimeWait(ByVal nValue As Integer)
' Delay nValue seconds
Dim WaitTimer As Long
DoEvents
WaitTimer = Timer
Do While Timer - WaitTimer < nValue
If Timer < WaitTimer Then WaitTimer = Timer - WaitTimer + 86400
DoEvents
Loop
End Sub |
Partager
